ESP32 BLE Gateway MK110

ESP32 BLE Gateway MK110

  • Built in ESP32 module, support BLE& WiFi communication
  • Max scanning distance 130m(Open area)
  • Provides IOS&Android APP SDK for customer to develop their own APP
  • Support the development of power metering function
  • Schematic diagrams are available for customers to develop firmware
  • CE/ETL/FCC/RoHS certification

Description

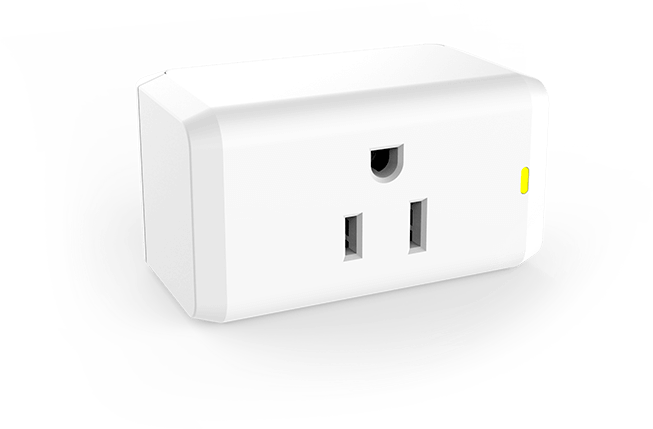

MK110 is a new type of esp32 gateway (or Bluetooth probe) that uses an esp32 chip, integrating WiFi and Bluetooth wireless communication. It’s similar in appearance to a U.S. type smart plug socket. It is small and lightweight, making it much more convenient for people to use. MK110 esp32 gateway parameters perform well, and its performance has been very stable and reliable during usage and customer testing. MK100 supports OTA firmware upgrade. This device has both UL and FCC certificates.

MK110 can scan Beacon devices and sensors nearby to gather location or temperature information by Bluetooth, and then uploads these messages to cloud servers via WIFI. The Bluetooth has a maximum scanning distance of up to 130m. The MK110 esp32 gateway supports multiple servers like EMQTT, AWS, Ali etc.

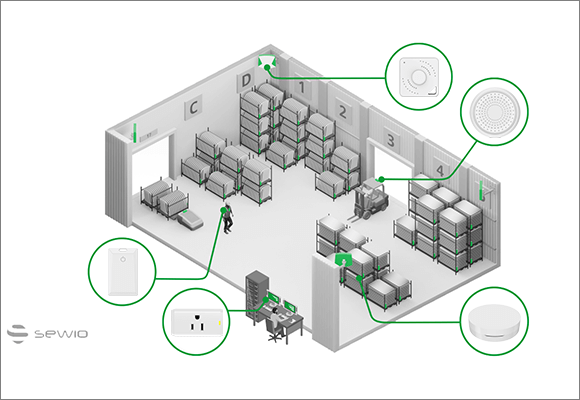

MK110 esp32 gateway can be used in asset tracking, people management, sensor monitoring, positioning & location tracking solutions. We provide schematic diagrams in order for clients to develop firmware, and Android & iOS SDK for your application development.

MK110 esp32 gateway is MK100 series product; it has the same measurements and enclosure as our MK100 smart plug.

Features

  • Built in ESP32 module, support BLE& WiFi communication
  • Max scanning distance 130m(Open area)
  • Built in MOKO standard firmware
  • Provides power metering SDK for customers to develop firmware
  • Support API for APP developing
  • Firmware update Over The Air (OTA)
  • Schematic diagrams are available for customers to develop firmware

Parameter

BluetoothBluetooth 4.2
NetworkWiFi IEEE 802.11b/g/n
Input Voltage:100-240V AC 50/60Hz
Operating Temperature:0 ºC~ 40 ºC ( 32°F ~ 104°F )
Operating Humidity:10%~90%, Non-condensing
Plug Type:US/EU/UK/AU/FR
Dimension:110 x 62 x 67 mm
Certification:CE/ETL/FCC/RoHS

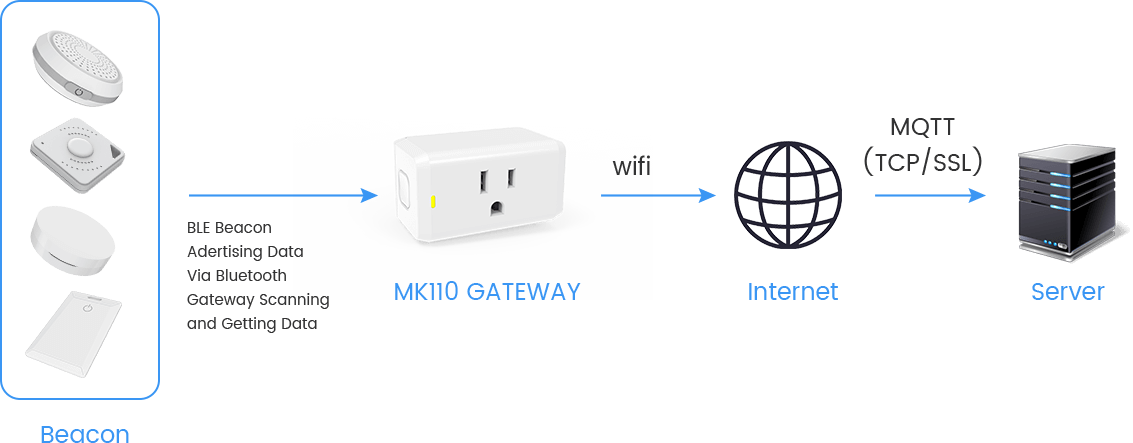

How MK110 BLE ESP32 Gateway Works

How MK110 BLE ESP32 Gateway Works

Applications

Display

Document
