Modules based on Nordic's nRF52832 enables users with limited RF design experience to develop complex wireless applications

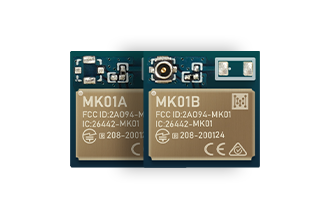

Nordic nRF52832 Module


Ceramic & u.FL Conncetor Antenna

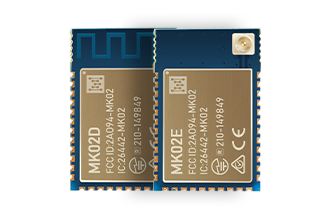

Nordic nRF52832 Module


PCB & u.FL Conncetor Antenna

Nordic nRF52832 Module


Standard NFC Antenna

The Nordic nRF52832 multi-protocol SoC features a powerful 64MHz, 32-bit Arm Cortex M4F processor, a 2.4ghz radio with -96 DBM RX sensitivity, and offers a total link budget > The 100dBm, along with generous 64kB RAM and 512kB flash, make the SoC ideal for complex applications that require remote access. The module gives developers the flexibility to choose between integrated PCB antennas and U.F.L external antenna connectors

Modules based on Nordic nRF52832 is a universal multi-protocol SoC that meets the challenges of a wide range of applications that require advanced Bluetooth LE features protocol concurrency and a rich variety of peripherals and feature sets. What’s more, it offers a large amount of memory availability for Flash and RAM. It has multi-protocol capabilities for full protocol concurrency It supports Bluetooth low power consumption, including high speed 2Mbps function Bluetooth grid can run in parallel with Bluetooth LE, smart phone can provide configuration debugging and control grid node also supports NFC ANT and 2.4ghz proprietary protocol.

It has the NFC-A tag for simplifying pairing and payment solutions. There are many digital interfaces it has, for example, I2S and PDM,etc.



Built in Nordic’s nRF52832

Bluetooth 5.2

Support BLE,LE,Bluetooth mesh and Advertising Extensions


2360MHz to 2500Mhz

Supply voltage range

1.7 V to 3.6 V

Core CPU

64 MHz ARM® Cortex-M4F CPU

Powerful memory

512kB Flash and 64kB RAM

Operating temperature range

From -40 to 85 ℃

Advertsing distance

Up to 120 meters advertising distance


Support for 2 Mbps data rates and 1 Mbps GFSK

Various configurable interfaces


Application design

Utilize Nordic SDK directly


Certified by FCC, CE, IC, RoHS, Reach
