WiFi Smart Wall Socket Plug MK211

The MK211 esp32 smart wall socket is a smart electrical plug with USB charger port designed to control electrical devices via WIFI, It can track the power and energy consumption of the connected device with extremely high accuracy.

MK211 WiFi socket contains two models-1 gang switch socket and 2 gang switch socket, both have a modern and safe design, can fit perfectly with every indoor place. Compared with the MK201 socket, it has a remote controlling function, can help you create a comfortable, controllable, and cost-saving domestic or commercial environment.

FUNCTIONAL BLOCK DIAGRAM

• Standard hardware and firmware support MQTT protocol, can access to your own cloud server
• Communication protocol is based on MQTT V3.1.1

PRODUCT FUNCTION

Remote control plugged device ON/OFF
Overload protection make it safer to use
Measures active power and energy with ±0.5% accuracy
Makes hourly/daily/monthly energy consumption visible in the server or APP
Displays device status and current load using multicolour LED frame
Firmware update Over The Air (OTA)
Supports standard MQTT broker, AWS IOT and Aliyun IOT

PRODUCT FUNCTION

Remote control plugged device ON/OFF

Overload protection make it safer to use

Measures active power and energy with ±0.5% accuracy

Makes hourly/daily/monthly energy consumption visible in the server or APP

Displays device status and current load using multicolour LED frame

Firmware update Over The Air (OTA)

Supports standard MQTT broker, AWS IOT and Aliyun IOT

Parameter

Wireless Type

WiFi

MCU

ESP32

Input Voltage

100V-240V AC 50/60Hz

Rated load current

13A - continuous load

Power output

3120W Max

Operating temperature

0 ºC~ 40 ºC ( 32°F ~ 104°F )

Plug type

UK

Dimensions(L*W)

1 gang: 86mm*86mm
2 gang: 146mm*86mm

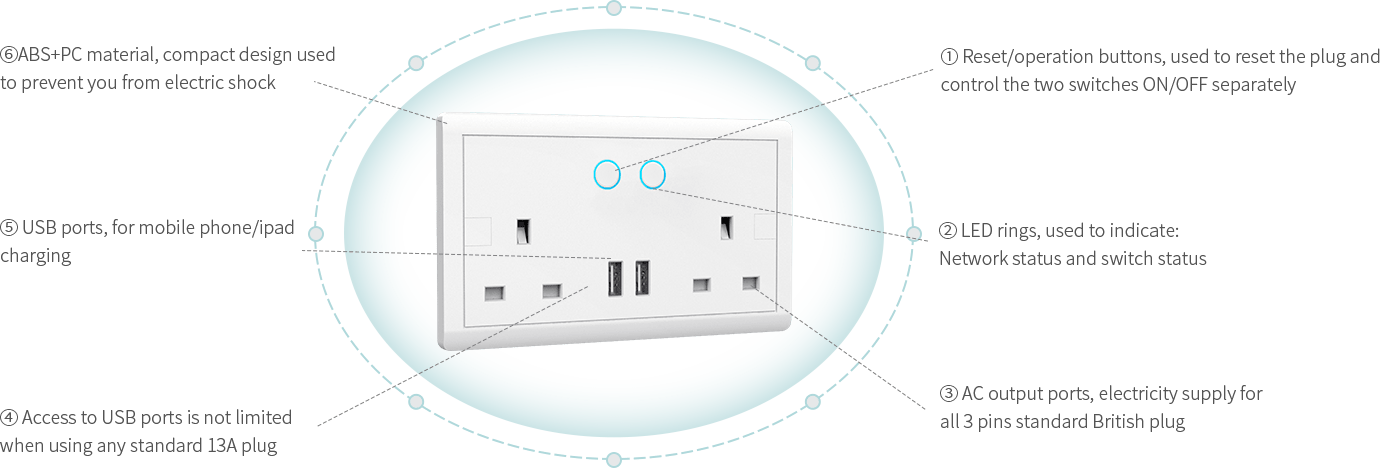

Details Description

Applications

Smart home appliances control

Intelligent office

Automation equipments control

Intelligent buildings

Effective power/energy metering

Real saving energy and bills

Smart home appliances control

Intelligent office

Automation equipments control

Intelligent buildings

Effective power/energy metering

Real saving energy and bills

Product Model

ModelDescription
MK201-1 gangUK type,1 gang switch socket, without remote controlling function
MK201-2 gangUK type,2 gang switch socket, without remote controlling function
MK211 - 1 gangUK type,1 gang switch socket, with remote controlling function
MK211 - 2 gangUK type,2 gang switch socket, with remote controlling function
