ESP32 WIFI Socket MK115

MK115 is a WiFi socket device using Wi-Fi connection wireless technology that turns your typical electrical device into a smart, 制御可能, and multi-functional device.And it has a small, compact enclosure, also easy for installation.

This WiFi socket can be operated using the button on the casing or via mobile APP through WIFI.It works as a power controller with very high measuring accuracy. and mainly used in household appliance control and industrial equipment control so as to monitor the power consumption and save energy.

ESP32 WIFI Socket MK115 banner

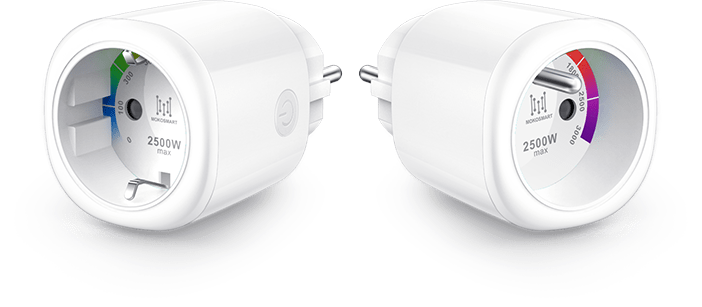

Type F & Type E

Functional Block Diagram

  • Standard hardware and firmware support MQTT servers ,also support your own cloud server
  • Communication protocol is based on MQTT V3.1.1
MK115 WiFI socket plug Functional Block Diagram

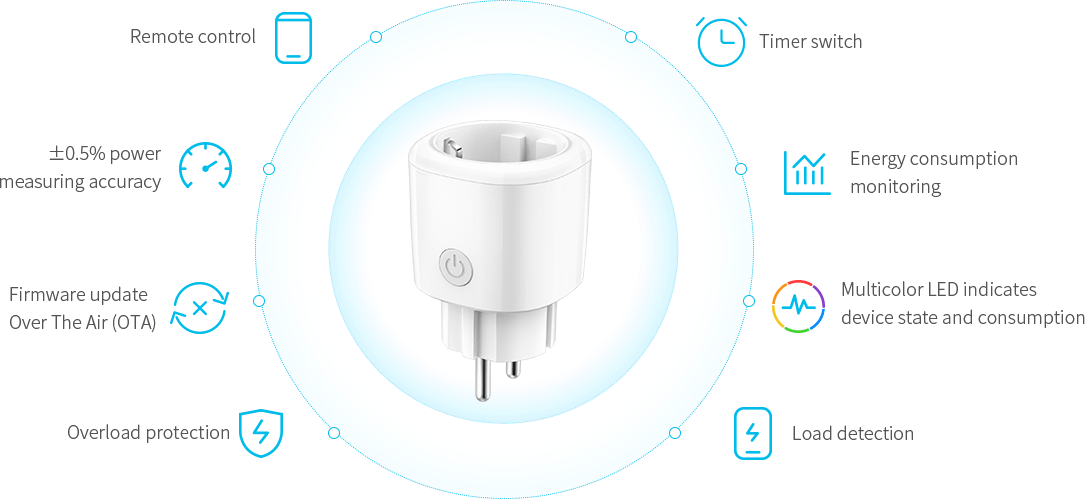

製品の特徴

MK115 Product Features

A multifunctional smart device makes power under control

Power meter monitoring using mk115 wifi power socket

パラメータ

ワイヤレスタイプ: Wi-Fi
MCU: ESP32
入力電圧:230V AC 50 / 60Hz
Rated load current:11あ - continuous load
power output:2530Wマックス
使用温度: 0 ºC〜 40 ºC ( 32°F〜104°F )
WiFi Socket type:EU/FR
外形寸法(Diameter*Height):Type E:51.5*87.5んん;
Type F:51.5*84.5んん
EU directives compliance :RED 2014/53/EU
MK115 esp32 wifi socket Dimensions

Exploded Drawing
Make every detail perfect, keep improving in design

  • Both PCBA and enclosure adopt safe materials
  • Compatible with more wireless communication way

Application

家電制御
MK115-icon (1)

家電制御

産業機器制御
MK115-icon (2)

産業機器制御

エネルギーを節約
MK115-icon (3)

エネルギーを節約

オートバイの充電メーター
MK115-icon (4)

オートバイの充電メーター

車の充電メーター
MK115-icon (5)

車の充電メーター

エネルギー管理
MK115-icon (6)

エネルギー管理

WiFi Socket CUSTOMIZED SERVICE

  • Support customized firmwareflash the customized firmware during the factory procedure
  • Zigbeeでカスタマイズされたハードウェアをサポート, Z波 , Bluetoothおよびその他のワイヤレスタイプ
  • Customized package and label
  • Power metering SDK and schematic diagrams are available for customers to develop firmware
  • Support Android& IOS API for APP developing
  • Professional engineers provide certificates service
    Based on the existing certificates, apply for the customer’s own certification
    Apply for new other certificates required by customers
