MOKOSmart wifi plug

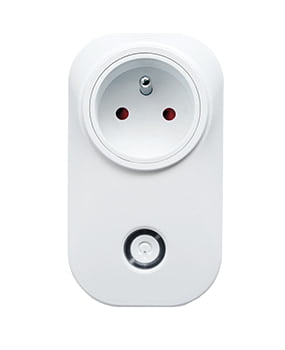

MK114 ESP32 Smart Plug Socket

MK114 is a smart home device that turns your typical
electrical device into a smart, controllable, and multi-functional device, enabling you to easily control your lights and household electronic devices via mobile app on your IOS or Android devices, どこにいても. And It also can measure the instantaneous and accumulative energy consumption of the connected devices. Compared to MK112, MK114 has a high-level metering precision.MK114 has standard Moko firmware which can connect to customer cloud platform.

特徴
  • Remote control applicance power ON/OFF on mobile-phone APP
  • Keep track of real-time power consumption
  • ESP32モジュールを内蔵, support BLE& WiFi communication
  • 標準のMQTT V3.1.1プロトコルとTLS V1.2トランスポート層暗号化プロトコルをサポート
  • 標準のMQTTサーバーに接続できます, Mosquitto MQTTやEMQTTなど; AWS IOT / Auzre IOT HUB / Aliyun IOTにも接続できます
  • Support API for APP and cloud server developing
  • カスタマイズされたサービス:
    • Zigbeeでカスタマイズされたハードウェアをサポート, Z波 , Bluetoothおよびその他のワイヤレスタイプ
    • ファームウェアを開発するための回路図が利用可能
パラメーター

型番

MK114

Power supply voltage

230 V~, 50/60 Hz

Switching capacity

3600W at 230V~, 16A, ohmic load

Internal power consumption

Average: 0,075W
Peak: up to 0,68W

Radio frequency

WLAN(Wi-Fi) 2.4 GHz
BT4.2/ BLE 2.4 GHz

Measurement accuracy

From 90W +/- 0.5%
Below 90W less accurate

Size of device (H x W x D)

110 x 62 x 52,5 んん

重量

140g

Ambient temperature

-10°C to +40°C

Degree of protection

IP20

Pollution degree

Cat. II

Rated impulse withstand voltage

2KV

認証

CE/ROHS/FCC

Connections

230V input
230V output
