BLE Smart Socket MK116B

MK116B is MOKO MK116 series product, it has the same size and enclosure with our MK116 WIFI smart socket, the biggest difference is the wireless communication type.
MK116B realizes multi-functionality using Bluetooth connection, it turns the connected electrical device into a smart, controllable device, and can work as a power and energy meter with extremely high accuracy.

Functional Block Diagram

  • Connect with your mobile APP to control the plug and get energy and power data
  • Work with a Bluetooth gateway, the adverting data will be uploaded to your cloud server
Functional Block Diagram

Parameter

Bluetooth Bluetooth 4.2
Bluetooth Chip NRF52832
Input Voltage 100AC- 240AC 50/60Hz
Maximum Load 10A
Operating temperature 0 ºC~ 40 ºC ( 32°F ~ 104°F )
Operating Humidity 10%~90%, Non-condensing
Plug type Type I
Dimensions(Length*Width*Height) 95mm x 43.5mm x 59mm
Certification SAA & RCM
BLE Smart Socket MK116B Dimensions

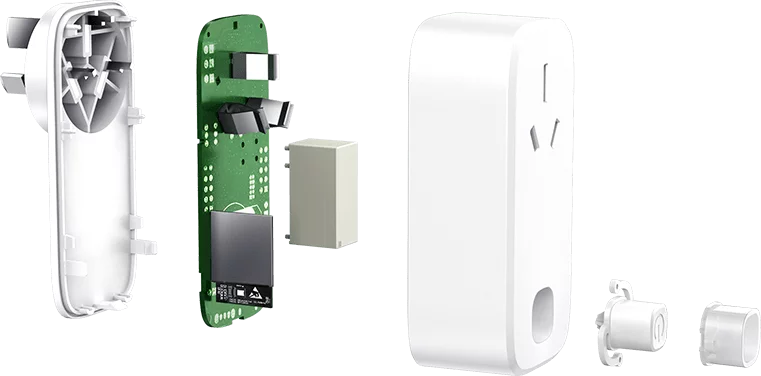

Exploded Drawing
Make every detail perfect, keep improving in design

  • Both PCBA and enclosure adopt safe materials
  • Compatible with more wireless communication way
BLE Smart Socket Exploded Drawing

Application

Household appliances control
MK115-icon (1)

Household Appliances Control

Industrial Equipment Control
MK115-icon (2)

Industrial Equipment Control

MK115-icon (3)

Real Saving Energy

Car Charging Metering
MK115-icon (4)

Motorcycle Charging Metering

MK115-icon (5)

Car Charging Metering

Energy Management
MK115-icon (6)

Energy Management

CUSTOMIZED SERVICE

  • Support customized firmware, flash the customized firmware during the manufacture
  • Support customized hardware with Zigbee, Z-wave and other wireless type
  • Packing customization: customized label, logo sticker and boxes
  • Power metering SDK and schematic diagrams are available for customers to develop firmware
  • Support Android& IOS API for APP developing
  • Professional engineers provide certificates service:

Customers can directly get your own certification that transfered by MOKO’s existing certificates
Also apply for certain certification required by customers

RELATED PRODUCTS

MK106 Bluetooth Gateway
MK106 Bluetooth Gateway
MKG-mini Gateway

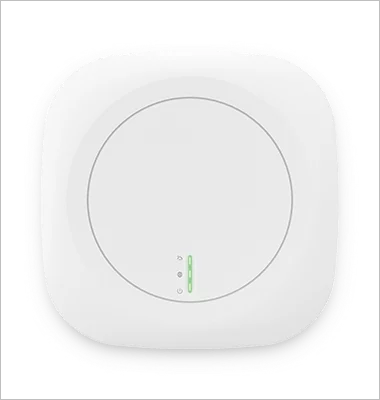

MKGW1 BLE WiFi Gateway
MKGW1 BLE WiFi Gateway

Documentation

Type Title Date
Product Brief MK116B Datasheet V1.0.pdf 2023-03-29
