The S05T Temperature Logger is a low-cost soft foam temperature logger with a slim, small design and customizable flexibility. It supports IP67 waterproofing and has one button and two LED indicators. The logger efficiently monitors temperature and location data throughout asset storage and transportation.
It offers robust flash storage capacity, which stores up to 60,000 groups of sensor data. Users can access this information in real-time or retrieve stored data via the cloud uploaded through the tracker or BLE gateway. Additionally, MOKO’s standard app enables direct connection to the logger for exporting comprehensive historical temperature data reports in Excel format.
> Lightweight and compact design
> Real-time temperature and location monitoring
> Dual LED indication
> Up to 60,000 groups of data logging
> Compatible with trackers and BLE gateways
> Generate Excel historical temperature data
> IP67 waterproof rating
> Tear the adhesive to wake up
The S05T monitors temperature changes of temperature-sensitive assets throughout storage and transportation. When temperatures deviate from the customized thresholds, users can promptly address issues to ensure the temperature integrity of food, drug, or cold chains.

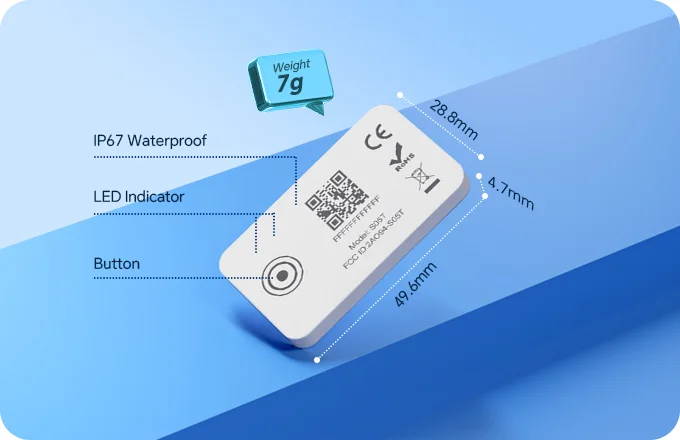

With its space-efficient design, the S05T travels effortlessly with your shipments. Its small form factor enables flexible attachment to various containers including boxes, baskets, wooden frames, and other surfaces for batch deployment.
The S05T logger can store up to 60,000 sets of data to capture a comprehensive temperature history. Using MOKO’s standard app, users can connect to the logger to export historical temperature data in Excel for review and documentation.

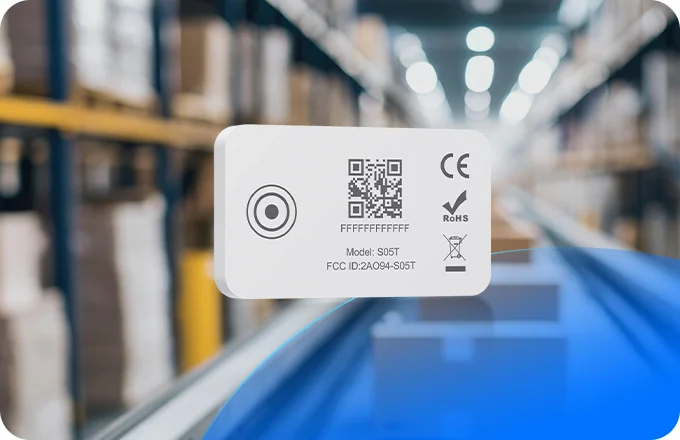

The S05T is a disposable logger that eliminates return logistics concerns. It’s a cost-effective choice for continuous temperature monitoring. Also, it delivers the flexibility essential for diverse shipping scenarios and supply chain requirements.
| Connectivity | BLE5.0 |
| Dimensions(mm) | 49.6*28.8*4.7 |
| Weight | 7g (Battery included) |
| Color | White |
| Material | EVA, PVC |
| IP rating | IP67 |
| Sensor | Temperature sensor Accelerometer sensor (optional) |
| Battery capacity | 220mAh | non-replaceable |
| Flash memory | 512K Bytes |
| Battery lifespan | 9 months (default setting*) |
| Operating temperature | 30°C ~ +60°C |
| Transmission range | Up to 150m (without any obstacles) |
| Installation | Sticker |
| Accuracy tolerance | ±0.2°C (0°C~ 60°C) ±0.5°C ~ ±0.2°C (-30°C~ 0°C) |
| Operating temperature | -40°C ~ +125°C |
| History storage | 60,000 groups |
| Type | Title | Date |
|---|---|---|
| Product Brief | S05T Temperature Logger Brief.pdf | 1/23/2025 |
