LW005-MP

LoRaWAN Meter Plug

LW005-MP is a wireless meter plug with consumption monitoring for indoor use. It is mainly used to measure electrical power consumption and wireless remote control.
Because different regions have different plug standards, we have designed LW005 products in EU, US, UK, and FRA standards.

· Based on LoRaWAN® Protocol
· LoRaWAN® Class C & Class A compatible

Product Features

> Supports 100V-240V, 50/60Hz voltage input
> Multiple protection mechanism
> Remote control
> Load detection
> Timer Switch
> Power Consumption track
> Instantaneous current, instantaneous voltage, instantaneous power reporting

> ±0.5 power measuring accuracy
> Multicolor LED indicates Load Power
> PC+ABS Flame-Retardant Material
> Childproof Design
> Unit-by-unit power metering calibration
> Firmware update Over The Air(OTA)
> 2* LED indicates device status and network status separately
> All parameters can be modified via APP by using bluetooth

Remote Control Anytime, Anywhere

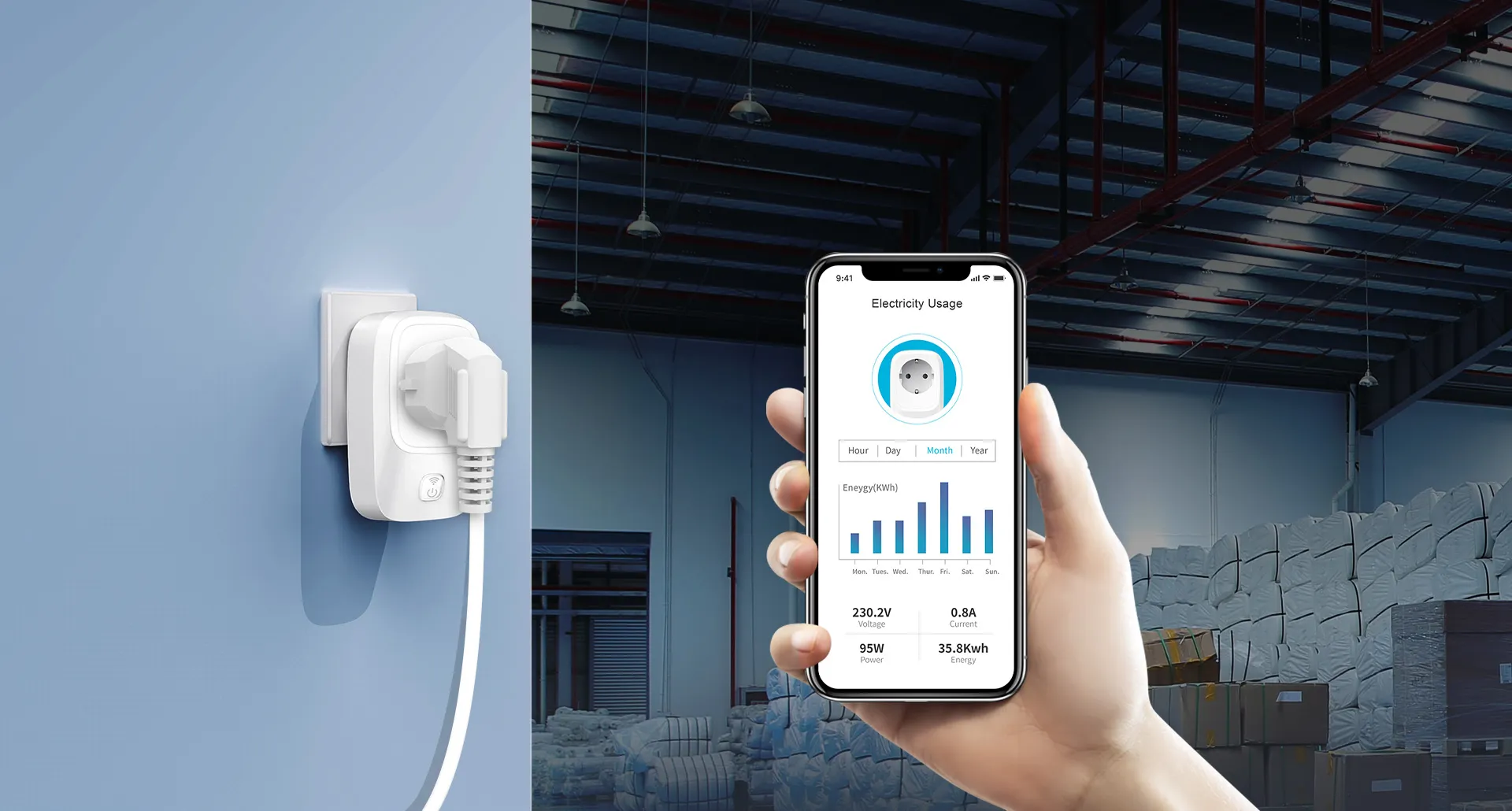

Energy Consumption Monitoring

It works as a power controller and electric power monitoring equipment, also with ±0.5 measuring accuracy. User can easily track hour/daily/monthly/historical total energy consumption.

Energy Consumption Monitoring

It works as a power controller and electric power monitoring equipment, also with ±0.5 measuring accuracy. User can easily track hour/daily/monthly/historical total energy consumption.

Overload/Overcurrent/Overvoltage/ Undervoltage Protection

LW005-MP will continuously monitor the current, voltage, and active power values in real-time. If the set thresholds and duration are exceeded, LW005-MP will automatically disconnect the output and report an alarm message to the server.

Overload/Overcurrent/ Overvoltage/Undervoltage Protection

LW005-MP will continuously monitor the current, voltage, and active power values in real-time. If the set thresholds and duration are exceeded, LW005-MP will automatically disconnect the output and report an alarm message to the server.

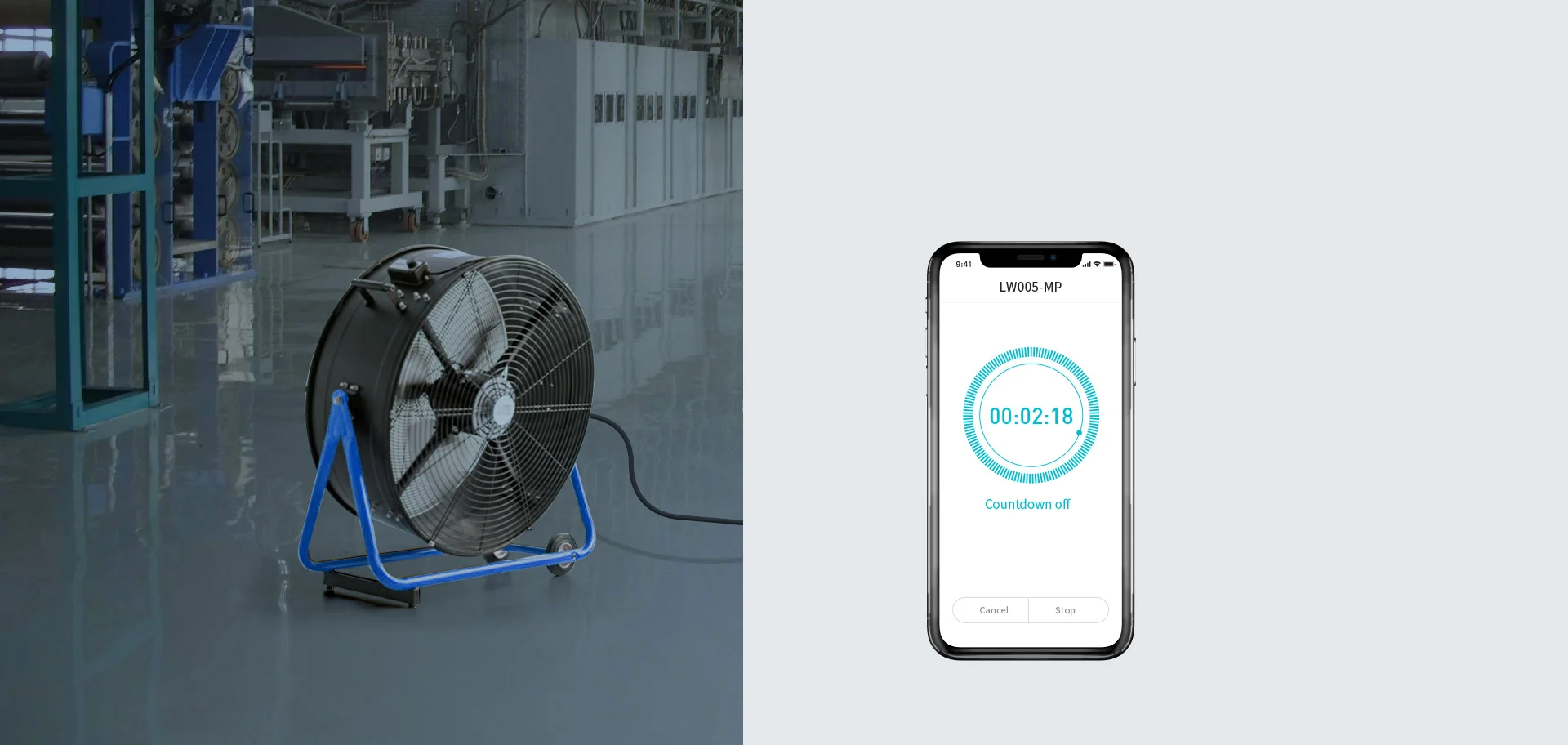

Timer Switch

Users can set a countdown time according to their scenario. When the countdown is over, LW005-MP will switch the switch state, thus controlling the switch state of the connected appliances.

Timer Switch

Users can set a countdown time according to their scenario. When the countdown is over, LW005-MP will switch the switch state, thus controlling the switch state of the connected appliances.

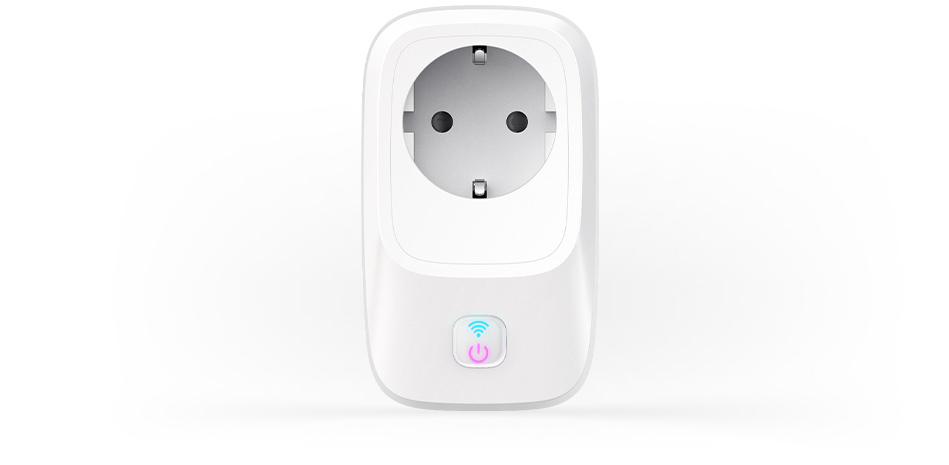

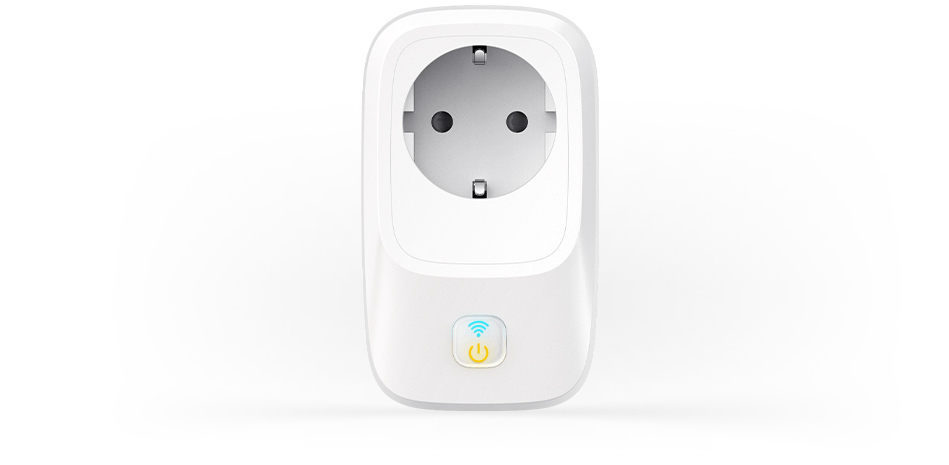

Multicolor LED indicates Load Power

When the LW005-MP is turned on, the power indicator will indicate different colors according to the power of the load appliances. Users can intuitively know which appliances are currently working according to the indicator color.

Customize Logo

Customize Package

Pre-configuration
Parameters

Customer Firmware
Programming

Customize Firmware

Technical Description

LoRa Wireless Parameter

Protocal

LoRaWAN V1.0.3

LoRa Frequency

CN470/ EU868/ AU915/ US915/ AS923/ IN865/ KR920/ EU433/ CN779/ RU864

Max Transmitted Power

21dbm

Sensitivity

-137dBm@SF12 300bps

LoRa Communication Distance

Up to 7 km (in urban open space)

Electrical Parameter

Plug Type

US/UK/EU/FR

Power Supply

100-240VAC, 50/60HZ

Output Capacity

US type: 15A
UK type: 13A
EU/FR type: 16A

Measure Accuracy

±0.5%

Physical Parameter

Dimension

104mm*61mm*34.5mm

Shell Material

ABS+PC

Color

White

Application Specification

Operating Time

-20℃ - 40℃

Operating Humidity

10% - 90% (No condensation)

Certification

CE&FCC certification in process

Documentation

Type Title Date
Product Datasheet LW005-MP product brief_V1.0.pdf 2022-12-29
