Bluetooth Gateway MK105

MK105 is a Bluetooth gateway plug that integrates WIFI and Bluetooth wireless technology. It is based on ESP32 solution and is cost-effective.
The plug works as a BLE scanner to gather Bluetooth broadcast data of BLE device nearby,and upload these data frames to MQTT server through WIFI. It is mainly used for position tracking and BLE sensor monitoring.

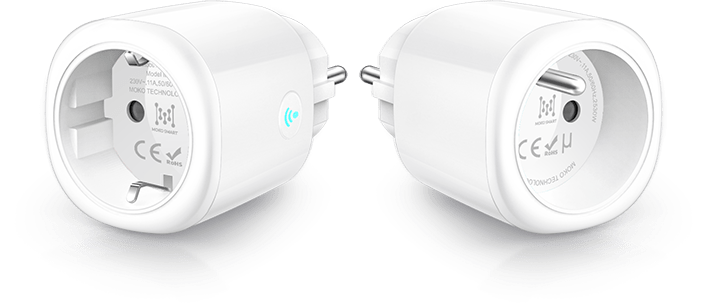

ESP32 Gateway Plug MK105 banner

Type F & Type E

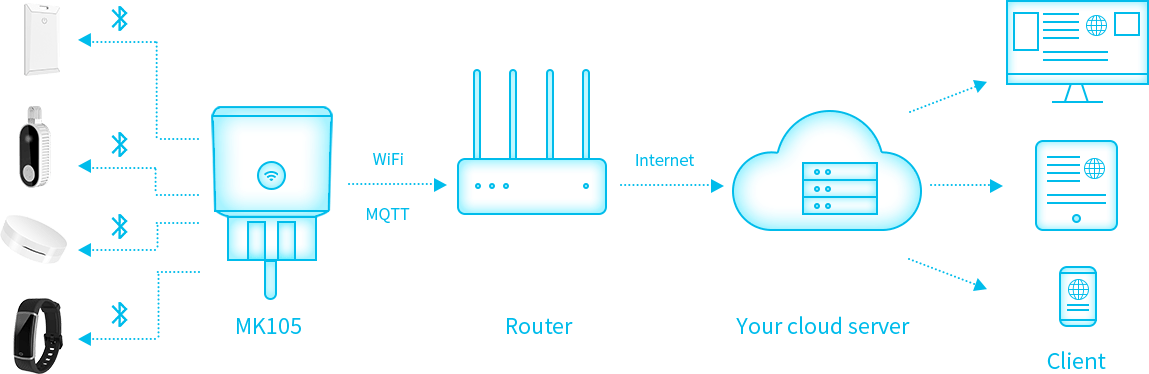

Functional Block Diagram

Standard hardware and firmware support MQTT protocol, can access to your own cloud server.

mk105 esp32 gateway plug Functional Block Diagram

Product Function

• 130M Bluetooth scanning range
• 100M WIFI connection range
• 150 times Bluetooth scanning rate
• Firmware update Over The Air (OTA)
• Supports standard MQTT broker,Ali IOT and AWS IOT
• Multicolor LED indicates device state

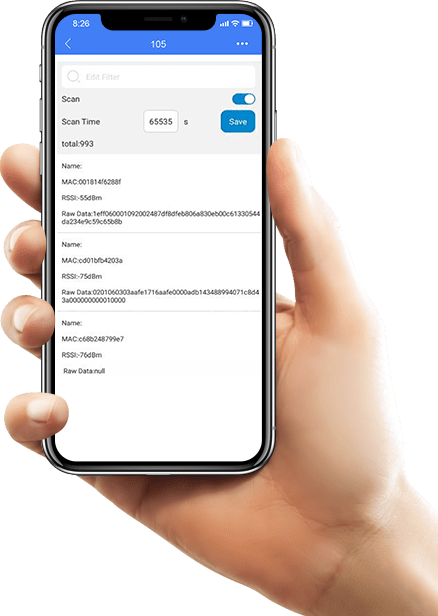

ESP32 Bluetooth Gateway Plug app interface

Parameter

Wireless Type: WiFi & Bluetooth
MCU: ESP32
Input Voltage: 230V AC 50/60Hz
Rated load current: 16A - continuous load
power output: 3680W Max
Operating temperature: 0 ºC~ 40 ºC ( 32°F ~ 104°F )
WiFi Socket type: EU/FR
Dimensions(Diameter*Height): Type E:51.5*87.5mm;
Type F:51.5*84.5mm
EU directives compliance : RED 2014/53/EU

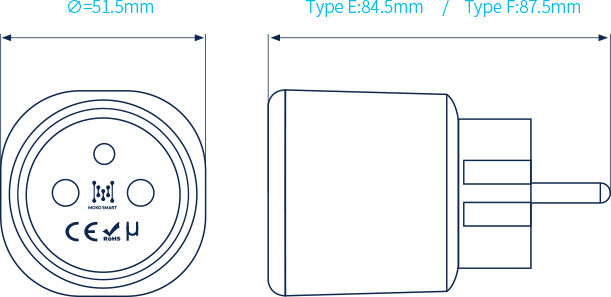

mk105 esp32 gateway plug Dimensions

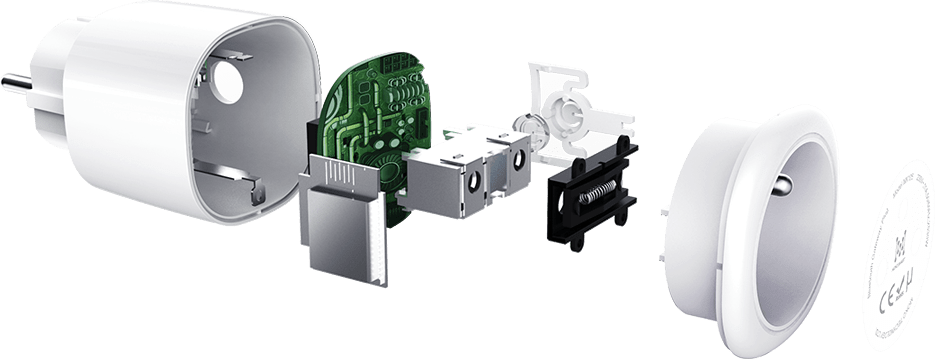

ESP32 Gateway Plug Exploded Drawing

Make every detail perfect, keep improving in design

  • Both PCBA and enclosure adopt safe materials
  • Compatible with more wireless communication way
Exploded Drawing for mk105 esp32 gateway plug

Application

mk105 bluetooth gateway plug for Position tracking in room
icon

Position tracking in room

mk105 esp32 bluetooth gateway plug for healthcare
icon

Health/Fitness monitoring
in hospital

mk105 esp32 gateway plug for Sensor monitoring
icon

Sensor monitoring

mk105 bluetooth gateway plug for Environmental monitoring

Environmental monitoring

mk105 esp32 gateway plug for Asset management
icon

Asset management

esp32 iBeacon & Eddystone & Sensor Data & BLE device raw data

iBeacon & Eddystone & Sensor Data & BLE device raw data

CUSTOMIZED SERVICE

  • Support customized firmware, flash the customized firmware during the manufacture
  • Schematic diagram is available for customers to develop firmware
  • Support Android& IOS API for APP developing
  • Provides communication protocol for customers to connect to their own server
  • Packing customization: customized label, logo sticker and boxes
  • Professional engineers provide certificates service:
    Customers can directly get your own certification that transfered by MOKO’s existing certificates
    Also apply for certain certification required by customers
