The L05 is a compact, plug-and-play USB BLE beacon. It requires no complex installation or external power sources. Simply insert it into any USB port and it starts broadcasting immediately. L05 comes in two variants: the L05I with internal antenna offering 150m range, and L05E with external antenna extending to 250m range.
With exceptional radiation capabilities, the L05 delivers strong, reliable signal strength across various environments. The simplicity together with self-powered features of the L05 makes it ideal for proximity-based applications such as indoor navigation, proximity marketing, asset tracking, and more.
➢ Plug-and-play USB BLE beacon device
➢ Simultaneous support of iBeacon and Eddystone
➢ Self-powered through USB connection
➢ Optional built-in antenna
➢ High-performance external antenna
➢ Durable ABS+PC construction for reliability
➢ Dual LED indicators for clear status display
➢ Customizable color options
You can deploy the L05 series products effortlessly in any environment with a USB interface. It has two LED indicators for working status. Once inserted, a green LED will light on. The L05 USB beacon is perfect for rapid, large-scale deployment in location-based applications.

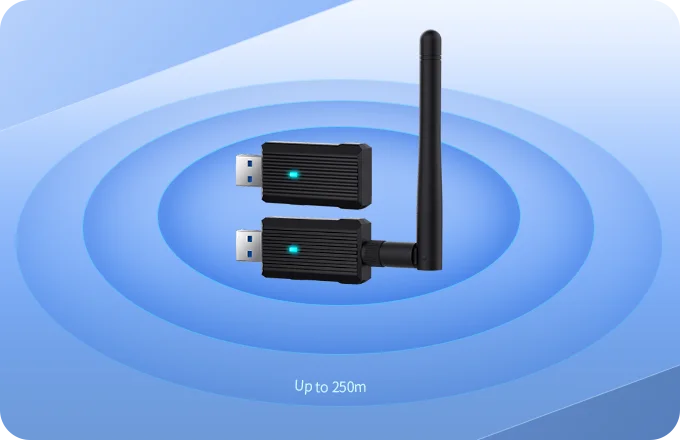

You can choose from the two versions of the L05 beacon: L05I with internal antenna and L05E with external antenna. The L05E has better radiation performance with up to 250m range.
L05 beacon is powered by USB, which means it has infinite battery life. The USB-powered design eliminates battery replacements and reduces maintenance costs. Just plug it in and enjoy reliable, continuous operation.
| Antenna | L05I (Internal Antenna) L05E (External Antenna) |
| Chips | nRF52 series |
| Range(Without any obstacles) | 150m (L05I) 250m (L05E) |
| LED | Red and Green |
| Material | ABS+PC |
| Color | Black (Customizable) |
| Weight | 10.1g (L05I) 19.9g (L05E) |
| Dimension (mm) | 43.0 *24.7 *11.4 (L05I) Φ9 *108 (External Antenna for L05E) |
| Installation | Insert into USB port |
| Power | USB |
| Operating temperature | -20 ºC~ 50 ºC |
| Certificate | FCC | CE | RoHS | REACH |
| Type | Title | Date |
|---|---|---|
| Product Brief | L05 USB BLE Beacon Brief.pdf | 2/18/2025 |
