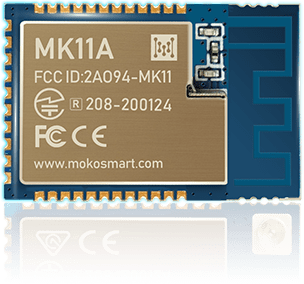

MK11 TI Bluetooth CC2642 Module
- Texas Instruments CC2642R SoC solution
- Bluetooth 5 – Direction Finding(AoA)/2 Mbps/CSA #2/Advertising Extensions/Coded PHY(Long Range)
- 48 MHz ARM® Cortex-M4F CPU
- 352KB Flash/256KB ROM/8KB Cache SRAM/80KB ultra-low leakage SRAM
- 1.8 V to 3.8 V
- UART/SPI/I2C/I2S/SSI/PDM/ADC/DAC
- DC/DC converter enabled
- 25 x 17x 2.8mm (with shield)
- -40 ℃ to 85℃ (MAX 105℃ can be customized)
- 30 GPIOs
- PCB antenna
Product Instruction
The MK11A cc2642 module is a low-cost and low-power consumption Bluetooth module based on Texas Instruments CC2642R SoC solution, which has a powerful 48-MHz Arm® Cortex™-M4F processor supporting Bluetooth® 5.1 Low Energy and Proprietary 2.4 GHz applications.
This is a Bluetooth 5.1 module that supports Bluetooth Direction Finding/AoA. MK11A TI Bluetooth module has 352KB in-system programmable flash memory, 80KB ultra-low leakage SRAM, and its rich memory strongly supports the rapid implementation of the BLE 5.1 solution. MK11A can support up to 105℃ (customization required), which can meet more and more complex environmental applications.
The MK11A cc2642 module is optimized for low-power wireless communication and advanced sensing in building security systems, HVAC, asset tracking, medical, wired networking, portable electronics, home theatre & entertainment, and connected peripherals markets, and applications where industrial performance is required.
Product Specifications
| Detail | Description |
| Bluetooth | |
| Bluetooth version | Bluetooth® 5.1 SoC Bluetooth Low Energy CSA #2 LE 1M PHY, LE 2M PHY, LE Coded PHY (long range) Bluetooth® Mesh Direction finding/AoA Advertising Extensions |
| Security | AES 128- and 256-bit Crypto Accelerator |
| LE connections | Concurrent central, observer, peripheral, and broadcaster roles with up to twenty concurrent connections along with one observer and one broadcaster |
| Radio | |
| Frequency | 2360MHz - 2500Mhz |
| Modulations | GFSK at 1 Mbps, 2 Mbps data rates |
| Transmit power | +5 dBm maximum |
| Receiver sensitivity | -105 dBm for Bluetooth 125 kbps (LE Coded PHY) -97 dBm for 1 Mbps PHY |
| Antenna | PCB trace antenna |
| Advertsing distance @1Mbps | More than 120 meters |
| Mechanical Design | |

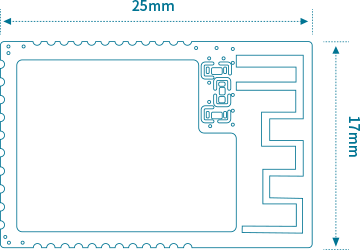

| Dimensions | Length: 25mm±0.2mm Width: 17mm±0.2mm Height: 2.8mm+0.1mm/-0.15mm |
| Package | 36 Plated Half-hole pins |
| PCB material | FR-4 |
| Impedance | 50 Ω |
Support Links
| Item | Description | Link |
| Main Chip Solution | TI2642 Product Specification | https://www.ti.com/lit/ds/symlink/cc2642r.pdf?&ts=1590141666730 |
| User Mannual | Bluetooth UART Transparent Transmission | https://www.mokosmart.com/pdf/Bluetooth%20UART%20Guide-V1.0-20091001.pdf |
| Datasheet - MK11A Bluetooth Module | https://www.mokosmart.com/pdf/MK11A_Bluetooth_Moduel_Datasheet-V1.1_20101501.pdf | |
| Schematic | Schematic - MK11A | https://www.mokosmart.com/pdf/MK11A%20Schematic-V1.0-20090401.pdf |
| Product List - Bluetooth Module | https://mokosmart.com/pdf/MOKO%20Bluetooth%20Module%20Family-20090401.pdf |
