The UT1 ultra-thin paper asset tag is an innovative and eco-friendly BLE asset tag, perfect for efficient asset tracking. This paper tag features an ultra-thin, flexible design with a 1.2/2.3mm profile. Remarkably, it is powered by an environmentally conscious zinc-based paper battery with up to 3.5 months of operational life. The UT1 also boasts an IP67 waterproof rating for exceptional durability.
Optional NFC support allows seamless integration with your systems and requirements. Whether deployed in logistics, warehousing, retail, or other asset management scenarios, the cost-effective UT1 serves as a highly versatile option.
> Ultra-thin and flexible paper-like design
> Incorporates eco-friendly zinc-based battery
> IP67 waterproof rating for durability
> Two flexible versions UT1 (2.3mm) and UT1P (1.2mm)
> Long-range 100m Bluetooth connectivity
> Impressive 3.5-months battery lifespan
> Optional NFC functionality available
> Environmentally sustainable and green product

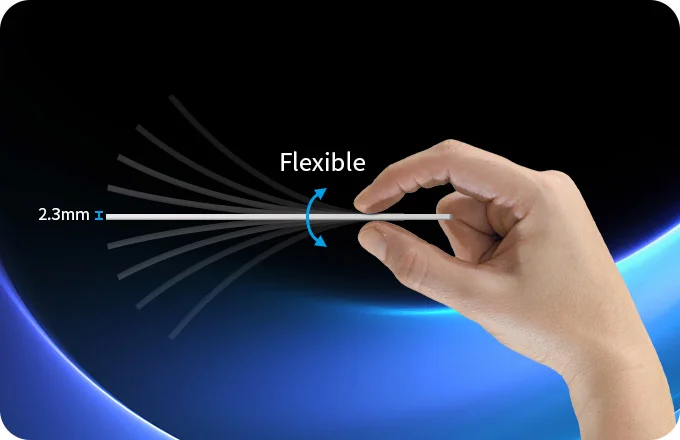

At only 2.3mm thick and 5 grams, the UT1 paper asset tag seamlessly integrates with assets. Its flexible, paper-based design effortlessly conforms to curved surfaces for an unobtrusive fit. Despite the ultra-thin profile, it’s engineered tough to work in daily use.
The UT1 paper asset tag utilizes an innovative zinc-based paper battery for eco-friendly power. Its low-power design provides an extended 3.5-month battery life. With a range up to 100m, BLE maintains reliable connectivity across open layouts.
The UT1 has been meticulously engineered with economic efficiency and flexible durability. Its IP67 paper casing ensures ruggedness for daily use, even in harsh environments. To minimize costs while maximizing performance, it utilizes an ultra-thin battery and chip design.
Bluetooth version
Bluetooth LE 5.0 and 5.3 compatible
Dimensions
67.3mm X 58.0mm X 2.3mm (UT1)
73.3mm X 83.5mm X 1.2mm (UT1P)
Weight
5g (UT1)
6.6g (UT1P)
Material
PVC (Environmentally friendly material)
Color
White
Bluetooth range
100m (open area)
Battery
Environmentally-friendly Zn-Mn coated disposable paper battery, 40mAh (1.5V)
Battery lifespan
3.5 months (Continuous work*)
Operating temperature
-25°C ~ 55°C
Installation
Sticker
Power activation
NFC (optional)
| Type | Title | Date |
|---|---|---|
| Product Brief | UT1 Paper Asset Tag Brief.pdf | 01/22/2024 |
