LW007-PIR

LoRaWAN PIR Motion Sensor

The LW007-PIR is a passive infrared-based LoRaWAN PIR sensor used to detect motion or occupancy. It can send the change of status over the LoRaWAN network once it detects there’s movement within the detection range. In addition, it also supports door status detection and temperature and humidity monitoring functions, making it widely used in office, residential, industrial building and other scenarios.

Product Features

> Occupancy or motion detection based on passive infrared and Fresnel Lens
> Long detection range(Max. 8m) and wide detection angle(Horizontal 120°, vertical 60°)
> Door status detection
> High sensitive temperature & humidity Sensor with exterior ventilation holes design

> Custom bracket with different opening angles
> Multiple temperature and humidity monitoring alarm functions for dealing with abnormal situations timely
> Ultra low power consumption with 5200mAH lithium sub-battery,which can stand up to five years
> CE and FCC certification are pending

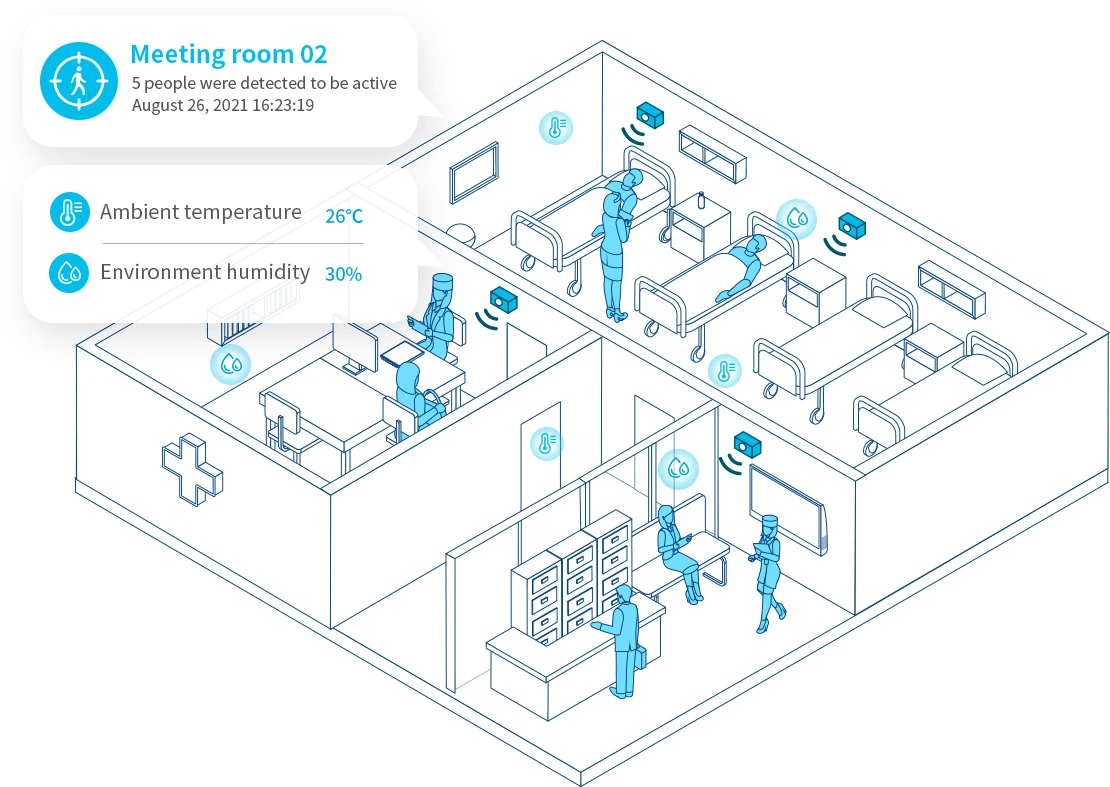

Smart Office with Occupancy Detection & Temperature and Humidity Monitoring

Using LW007-PIR, users can detect the occupancy of conference rooms or other dedicated Spaces, thus rationally arranging space resources. The LW007-PIR sensor can also be used to monitor the temperature and humidity of the current environment.

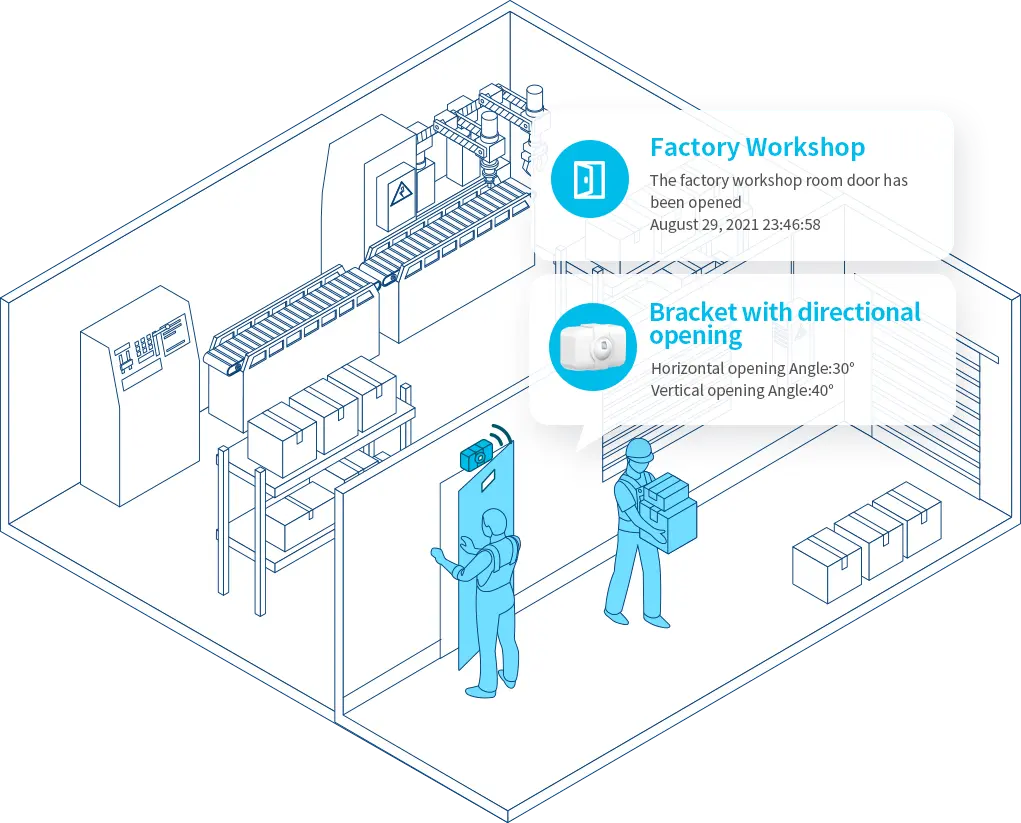

Custom bracket with different opening angles application

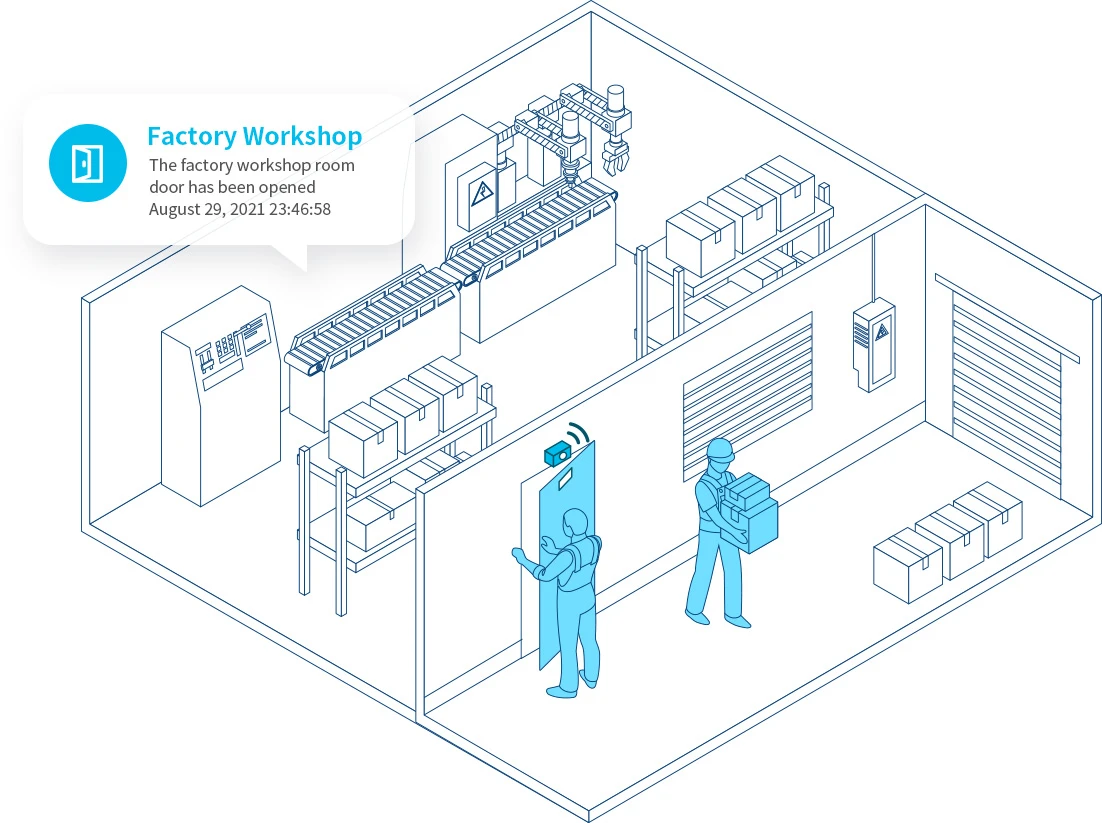

Intelligent Factory with Occupancy and Door Status Detection

Users can use LW007-PIR motion sensor to detect whether someone is on duty at the appropriate time and location to ensure the safety of assets, equipment and production. The device reports the notification to the server. Users can determine the duty status and inspection status based on the server and schedule management accordingly

Environmental Monitoring with Occupancy Detection & Temperature and Humidity function

LW007-PIR motion sensor can monitor the temperature and humidity of the environment. When the temperature (humidity) changes too fast or exceeds the set threshold, an alarm message will be sent to realize the intelligent monitoring of the environment.
It’s mainly applied to the computer room, library storage room, document room, hospital ward, and other scenarios.

Customize Logo

Customize Package

Pre-configuration
Parameters

Customer Firmware
Programming

Customize Firmware

New Product Design

New Product Design

Technical Description

LoRa Protocol

LoRaWAN V1.03

LoRa Frequency

EU868/AU915/US915/AS923/IN865/KR920/ EU433/CN470/CN779/RU864

LoRa Communication Distance

7km communication distance (in urban open space)

Bluetooth Communication Distance

50m communication distance (in urban open space)

Battery

2*AA ER14505 5200mAh Replaceable battery

Material

ABS + PC

Dimensions

74mm*46mm*41mm

Operating Environment

Temperature: -30℃~60℃ Humidity: 0%~95%

Color

White

Installation Ways

Double-sided tape/Screws

Antenna

FPC

Certification (pending)

USA: FCC and Europe: CE are pending, other certifications can be customized

Documentation

Type Title Date
Product Datasheet LW007-PIR product brief V1.0.pdf 2022-12-29
Product Brief LW007-PIR product Specification_V1.0.pdf 2023-2-6
