The LW010-CT LoRaWAN Card Tracker is a portable, multi-mode tracker in format of an ID card. It integrates the LoRaWAN network transmission with Bluetooth and GPS positioning technologies for reliable indoor and outdoor positioning. The device is ideal for asset tracking, workforce safety monitoring, and logistics inspections. Magnetic charging and support multiple working modes, LW010-CT can meet your diverse tracking needs effectively across various scenarios.
> Long-range LoRaWAN communication
> Highly-accurate GPS + Bluetooth positioning
> Built-in 3-Axis accelerometer and buzzer
> IP66 rated for harsh environments
> Rechargeable 950 mAh battery, magnetic charging
> Provide Standby/Periodic/Timing/Motion/Periodic+Timing modes
> Wide LoRa frequency band support
> Optional temperature and light monitoring
> Operating temperature range: -20°C to 60°C

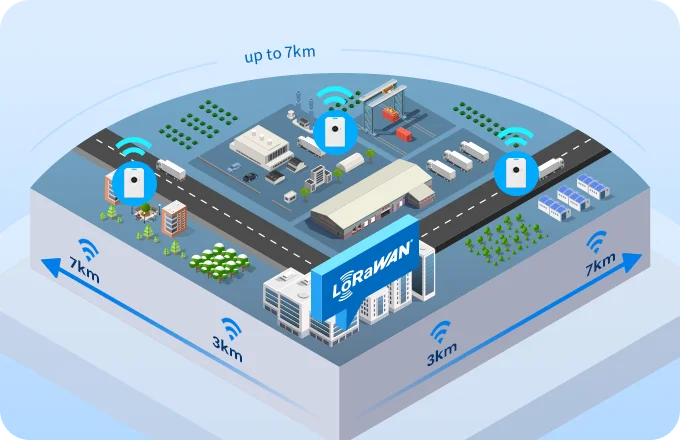

LW010 works across long-range LoRaWAN connectivity, allowing tracking over distances of up to 7km. It supports multiple LoRa frequency bands for worldwide deployment. When across regions, you can select the appropriate LoRaWAN frequency plan.

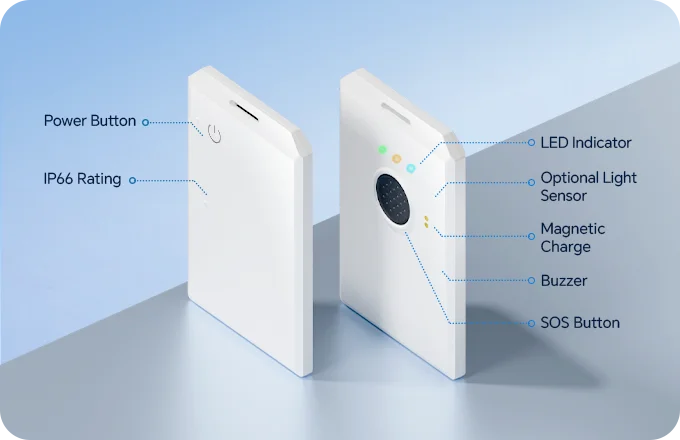

At just 7.5mm thick, the LW010-CT provides credit card dimensions and portability. The card tracker combines its slim profile with an IP66 rating and magnetic charging. LW010 is equipped with optional sensors including temperature sensor and light sensor.

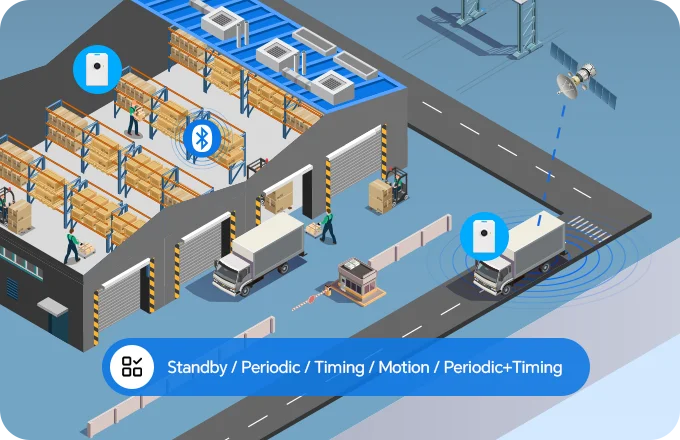

With different working modes, LW010 adapts to your tracking needs with 5 different GPS and Bluetooth tracking strategies. This flexible operation enables seamless and reliable tracking whether indoors and outdoors.

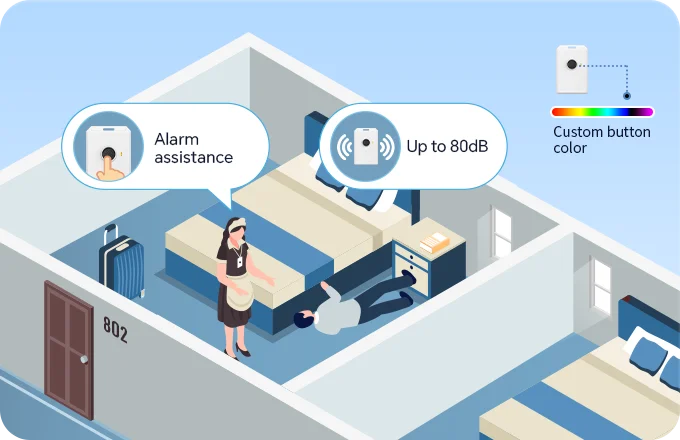

The LW010-CT also features prominent panic button and built-in buzzer (80 dB). Once activated, it sends an immediate alert to the management platform and triggers high-volume alarm. All keep your personnel and assets secure.
| LoRa Protocol | LoRaWAN V1.0.4 |
| LoRa Frequency | EU868/AU915/US915/AS923/IN865/KR920/-RU864/AS923-1/AS923-2/AS923-3/AS923-4 |
| Tx Power | Max 22dBm |
| Sensitivity | -137dBm@SF12 |
| LoRa Communication Distance | Up to 7 km (in urban open space) |
| Bluetooth® (BLE) | V4.2 |
| TX Power | Max 4 dBm |
| BLE Scan Distance | Up to 50m in free space |
| BLE Scan Distance (1M PHY) | Up to 150m in free space |
| Protection level | IP66 |
| Dimension | 91mm*59mm*7.5mm |
| Weight | 47.3g |
| Power Switch | Power button |
| Operation Temperature/Storage Temperature | -20℃ ~ 60℃ |
| Operation Humidity | 10% ~ 90% |
| Certification | CE/FCC/Reach/RoHS pending approval |
| Power Supply | 950 mAh rechargeable battery |
| Type | Title | Date |
|---|---|---|
| Product Brief | LW010 LoRaWAN Card Tracker Brief.pdf | 2/25/2025 |
