L03 Bluetooth 6.0 beacon is built with Nordic®’s nRF54L15 SoC. It supports the latest Bluetooth 6.0, including Bluetooth Channel Sounding (hardware compatible) to ensure precise and secure distance measurements. With the large 10400mAh battery, L03 is designed to operate for over 10 years.
The L03 Bluetooth 6.0 version features an IP67-rated enclosure and offers transmission power of up to +20dBm with an optional power amplifier. It is an ideal anchor for both indoor navigation and asset tracking, providing reliable positioning across wide areas, whether indoors or outdoors.
> Nordic nRF54L15 SoC
> Bluetooth 6.0 with Channel Sounding support
> Ultra-long battery life of 10+ years (10400mAh)
> Transmit power up to +20dBm with optional PA
> IP67 waterproof rating for reliable outdoor use
> Built-in 3-axis accelerometer sensor
> Tri-color LED indicator (red/green/blue)
> Double-sided tape or bracket mounting installation

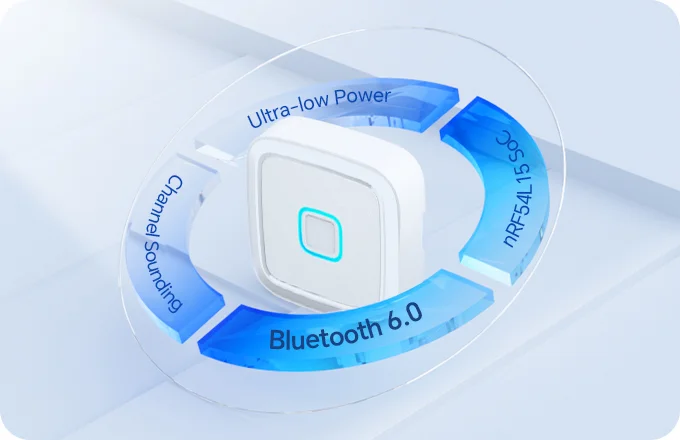

L03 adopts the latest Bluetooth 6.0 with Bluetooth Channel Sounding support. Powered by Nordic’s cutting-edge nRF54L15 SoC, this 6.0 beacon delivers precise distance measurements.

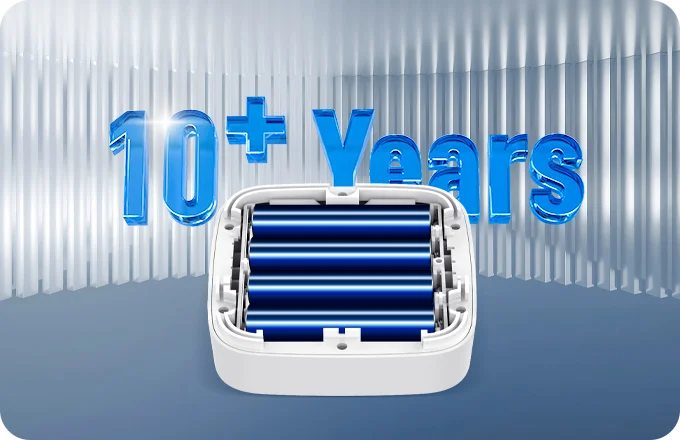

The L03 can run for over 10 years with its 10400 mAh battery. Combined with the ultra-low-power nRF54L15 SoC, it has exceptional longevity and no need for frequent battery replacements. Once installed, this beacon operates reliably and continously.

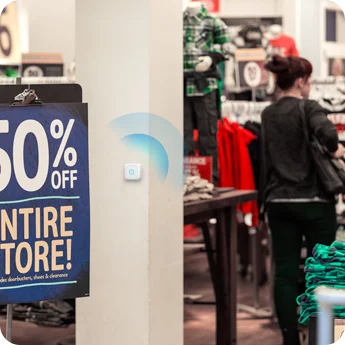

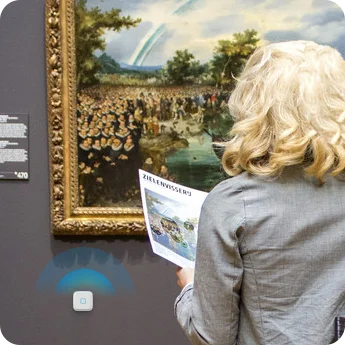

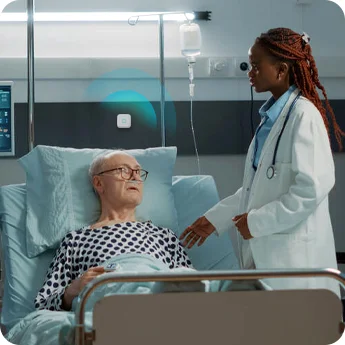

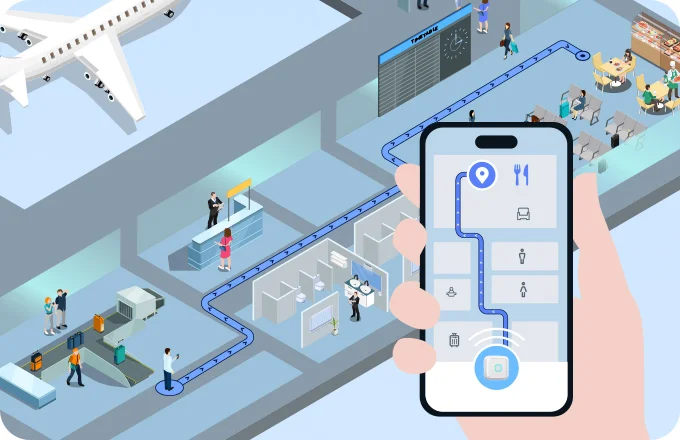

Installed at optimal heights, the L03 covers wide areas with its powerful transmission capabilities of up to +20dBm. The optional power amplifier allows broader coverage of larger spaces. This beacon is ideal for large venues like airports, malls, and campuses.

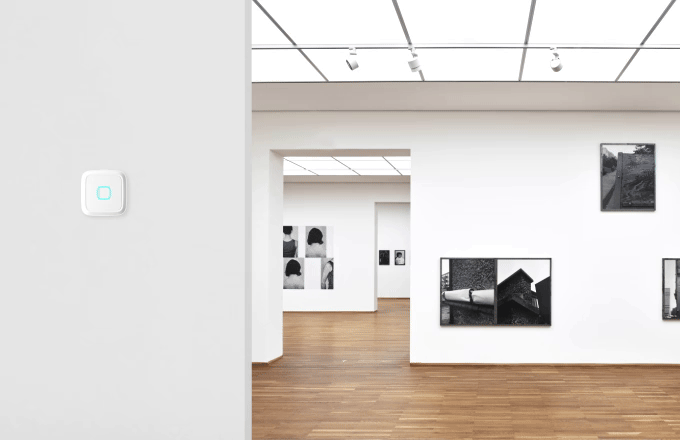

The L03 has sleek, esthetic design and IP67 waterproof rating. It’s easy to install. You can choose from either double-sided tape or bracket mounting for indoors and outdoors. The beacon enables simple and rapid bulk installation.
| Chipset | Nordic nRF54L15 |
| Bluetooth version | Bluetooth 6.0 |
| Dimensions (mm) | 74.0*74.0*23.0 |
| Transmit power | -46dBm~8dBm (normally) Maximum to +20dBm (PA optional) |
| Color | White |
| Material | PC+ASA |
| Weight | 125g |
| IP rating | IP67 |
| LED | Cricular LED – red/green/blue |
| Sensor | 3-axis accelerometer sensor |
| Battery spec | 4xER14505 Li-SOCI2 battery (replaceable) |
| Battery capacity | 10400mAh |
| Installation | Double-sided tape | Bracket (screw, zip-tie) |
| Operating temperature | -20°C ~ 60°C |
| Type | Title | Date |
|---|---|---|
| Product Brief | L03 Bluetooth 6.0 Beacon Brief.pdf | 2/25/2025 |
