MK02 nRF52832 Module + NFC Module

  • Nordic® Semiconductor nRF52832 SoC solution
  • Bluetooth 5(2 Mbps / CSA #2 / Advertising Extensions)
  •  64 MHz ARM® Cortex-M4F CPU
  • 512kB Flash and 64kB RAM
  • 1.7 V to 3.6 V
  • UART/SPI/ TWI/ PDM/I²S/PWM/ADC
  • NFC-A Tag
  • 21 x 13.8 x 2.3mm (with shield)
  • 30 GPIOs
  • Antenna(MK02D – PCB antenna / MK02E – u.FL connector)
  • Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, Bluetooth® mesh, ANT+ and 2.4GHz ultra low-power wireless applications.
MK01 Smallest Bluetooth Mosule Certificate icon

Product Instruction

The MK02 series nRF52832 module is a BLE 5 module boasting NFC function, giving it the easy possibility of becoming highly integrated, using the high-performance Nordic nRF52832 SoC solution. The MK02 Bluetooth module works with a wide variety of protocols, with complete protocol concurrency, including high-speed 2 Mbps. Additionally, Bluetooth mesh can run concurrently with Bluetooth LE, enabling smartphones to configure and control mesh nodes. It was designed to handle a high data rate with short-range wireless communication in the 2.4GHz ISM band. MK02 has a 32 bit ARM Cortex-M4 CPU, flash memory and analogue and digital peripherals. The MK02 provides low power, ultra-low-cost BLE and proprietary protocols for wireless transmission applications.

The MK02 nRF52832 module extracts the rich I/O resources. Through an immersion gold half-hole process, which is convenient for users to develop more applications. The module provides two high-performance solutions using its antennas. MOKO engineers provide rich selections and precise recommendations according to customers’ application scenarios and product designs. MK02 can be fitted with a Concurrent master (slave) firmware with full AT commands to facilitate users to rapidly initiate function verification. MOKOsmart has many years of valuable, effective design experience and can provide reliable support in Bluetooth software and hardware development.

MK02 series Bluetooth NFC module has two different models — MK02D and MK02E

Bluetooth Module Structure diagram

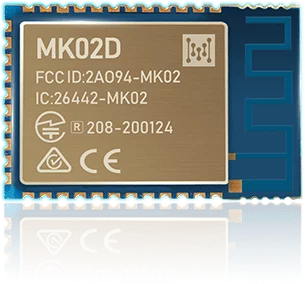

MK02D Bluetooth nRF52832 Module + NFC Tag

MK02D

MK02D integrates a high-performance PCB antenna

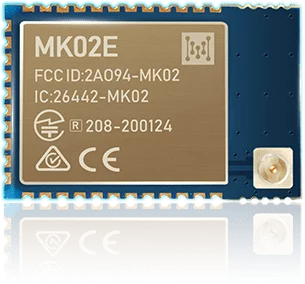

MK02E Bluetooth nRF52832 Module + NFC Tag Banner

MK02E

MK02E uses a u.FL connector and requires an external antenna.

Product Specifications

Detail Description
Bluetooth
Bluetooth version Bluetooth 5.2 SoC,supporting Bluetooth Low Energy, Concurrent Central & Peripheral, 2M LE PHY, 1M LE PHY, Advertising Extensions, CSA #2, Bluetooth Mesh
Security AES-128
LE connections Concurrent central, observer, peripheral, and broadcaster roles with up to twenty concurrent connections along with one observer and one broadcaster
Radio
Frequency 2360MHz - 2500Mhz
Modulations GFSK at 1 Mbps, 2 Mbps data rates
Transmit power +4 dBm maximum
Receiver sensitivity -96 dBm sensitivity in Bluetooth Low Energy mode
Antenna PCB trace antenna(MK02D)
External 2.4Ghz antenna(MK02E)
Advertsing distance @1Mbps More than 120 meters(MK02D)
Current consumption
TX only (DCDC enabled, 3V) @ +4dBm / 0dBm / -4dBm / -20dBm / -40dBm 7.5mA / 5.3mA / 4.2mA / 3.2mA / 2.7mA
TX only @ +4dBm / 0dBm / -4dBm / -20dBm / -40dBm 16.6mA / 11.6mA / 9.3mA / 7.0mA / 5.9mA
RX only (DCDC enabled, 3V) @1Msps / 1Msps BLE 5.4mA
RX only @ 1Msps / 1Mbps BLE 11.7mA
RX only (DCDC enabled, 3V) @2Msps / 2Msps BLE 5.8mA
RX only @ 2Msps / 2Mbps BLE 12.9mA
System OFF mode(3V) 0.3uA
System OFF mode with full 64 kB RAM retention(3V) 0.7uA
System ON mode, no RAM retention, wake on RTC(3V) 1.9uA
Mechanical Design
Dimensions Length: 21mm±0.2mm
Width: 13.8mm±0.2mm
Height: 2.3mm+0.1mm/-0.15mm
Package 34 Plated Half-hole pins
PCB material FR-4
Impedance 50 Ω
Hardware
CPU ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
Memory 512 kB flash / 64 kB RAM
Interfaces 3xSPI master/slave with EasyDMA
2xI2C compatible 2-wire master/slave
22xGPIO
8x12 bit ADC
UART (CTS/RTS) with EasyDMA
I2S with EasyDMA
PWM
PDM
NFC-A
Power supply 1.7V to 3.6V
Operating temperature range -40 to 85 ℃

Support Links

Item Description Link
Main Chip Solution nRF52832 Product Specification https://infocenter.nordicsemi.com/pdf/nRF52832_PS
_v1.4.pdf
User Mannual Bluetooth UART Transparent Transmission https://www.mokosmart.com/pdf/BluetoothGuide-
V1.0.pdf
Datasheet - MK02 Bluetooth Module https://www.mokosmart.com/pdf/MK02_Bluetooth_
Moduel_Datasheet-V1.pdf
Schematic Schematic - MK02D https://www.mokosmart.com/pdf/MK02DSchematic
-V1.0.pdf
Schematic - MK02E https://www.mokosmart.com/pdf/MK02ESchematic
-V1.0.pdf
Product List - Bluetooth Module https://mokosmart.com/pdf/MOKOBluetoothModule
Family.pdf
