LW001-BG PRO

LoRaWAN Tracker

LW001-BG PRO is a wireless smart, ultra-low power consumption, indoor&outdoor LoRaWAN Tracker. Available in two versions: LW001-BG PRO-A, LW001-BG PRO-A-C (Rechargeable). It integrates GPS positioning, Bluetooth positioning, and WiFi positioning, and supports a variety of working modes, suitable for most tracking applications.

Ideal for optimizing logistic processes, asset management, warehouse and inventory scenarios, outdoor tracking, theft protection, livestock tracking, and much more.

Product Features

> Support anti-demolition alarm
> Support motion detection
> Support offline fix
> Support vibration detection
> Support idle detection function
> Multiple working modes (Standby mode, Timing mode, Periodic mode, Motion mode)

> Firmware update Over The Air (OTA)
> Local data back-up for uplink payloads
> Support anti-tamper alarm
> Multiple and high precision positioning technologies (GPS, Bluetooth, WiFi)
> 4500 mAh Rechargeable version available (from socket or power bank)

Indoor & Outdoor Positioning

The LW001-BG supports both indoor and outdoor positioning. In indoor scenarios, the LW001-BG can be positioned indoors via wifi and Bluetooth technology; in outdoor scenarios, the LW001-BG can be positioned outdoors via GPS functionality.

Movement Trigger Management

The LW001-BG has a built-in high-performance tri-axis acceleration sensor. The three-axis acceleration sensor can detect the movement of the device, trigger the positioning function and report the position information to the server

Idle detection

If the LW001-BG is not moved for a long time, and beyond the set idle timeout, the device will send idle payload to remind the user of the current idle status to prevent the tracked device or livestock from abnormal conditions

Fragile and valuable goods protection

When LW001-BG is used to track fragile goods, valuable items or other things. Users can choose to turn on the vibration detection function, when strong vibration is detected, the device will record and report this vibration information to prevent unnecessary disputes.

Local data back-up for uplink payloads

Multiple installation Ways

The product can be mounted by screws, straps, double-sided tape, DIN rail, etc., and is suitable for most applications

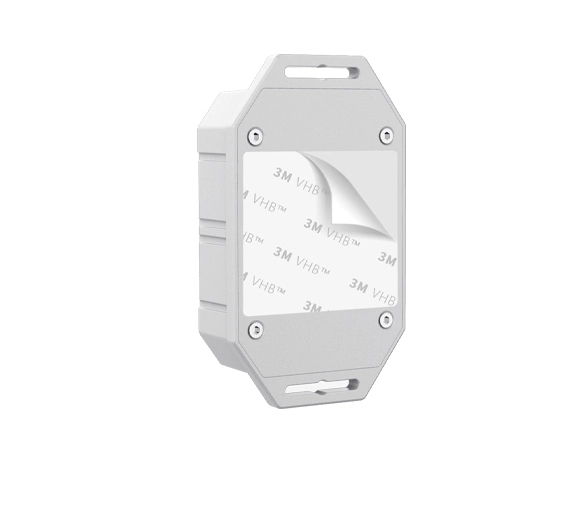

① Double-sided tape

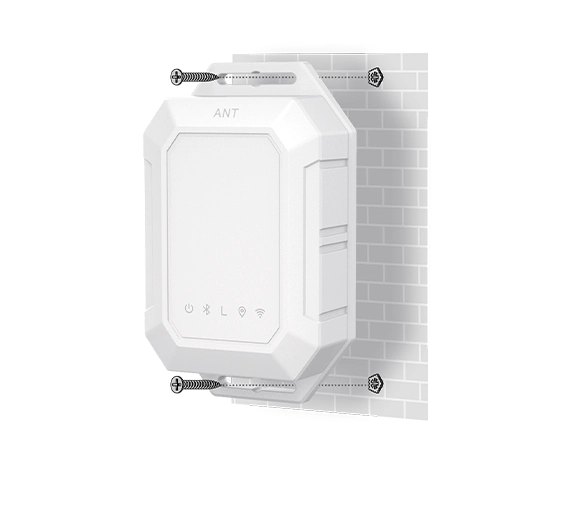

② Screws

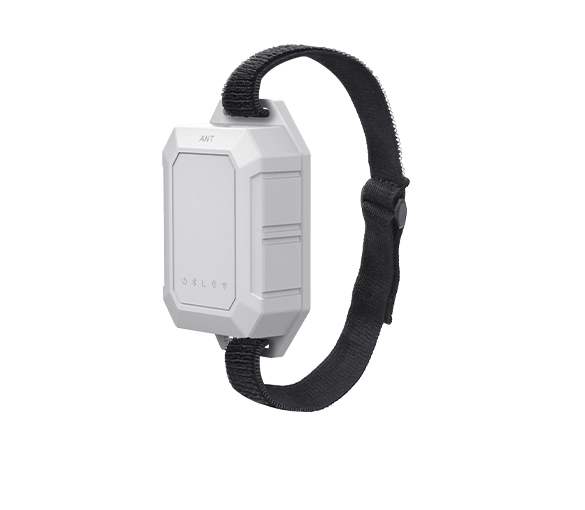

③ Straps

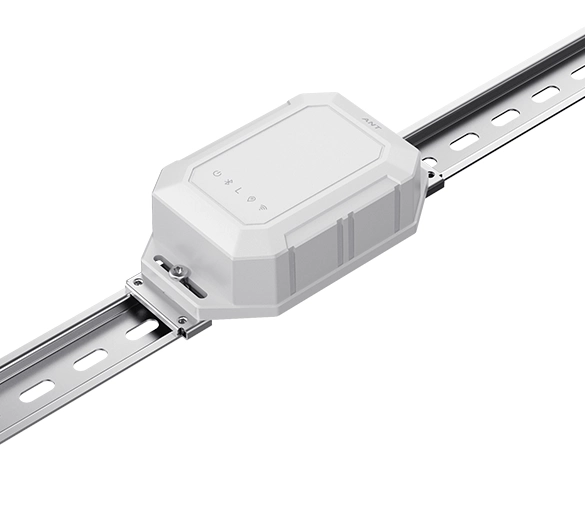

④ DIN rail

Customize Logo

Customize Package

Pre-configuration
Parameters

Customer Firmware
Programming

Customize Firmware

Technical Description

LoRa Wireless Parameter

Protocal

LoRaWAN V1.0.3

LoRa Frequency

CN470/EU868/AU915/US915/AS923/IN865/
KR920/EU433/CN779/RU864

Max Transmitted Power

20dbm

Sensitivity

-137dBm@SF12 300bps

LoRa Communication Distance

Up to 6 km (in urban open space)

BLE Wireless Parameter

Bluetooth® (BLE)

V5.0

Max TX Power

8 dBm

BLE Communication Distance

Up to 50m(in urban open space)

Physical Parameter

Dimension

122mm×72mm×33mm (±2mm)

Shell Material

ASA+PC

Color

Gray

Power Consumption

Power Supply

12000mAH no-chargeable battery(10000mAH available)

Operating Current

<180mA

Sleep Current

<15uA

Apploctaion Parameter

Operating Temperature

-20 ~ + 60℃

Operating Humidity

5% - 95% (No condensation)

IP Rating

IP67

Documentation

Type Title Date
Product Brief LW001-BG PRO Specification V1.1.pdf 2023-02-06
Product Brief LW001-BG PRO-A-C Product Brief.pdf 2024-01-11
