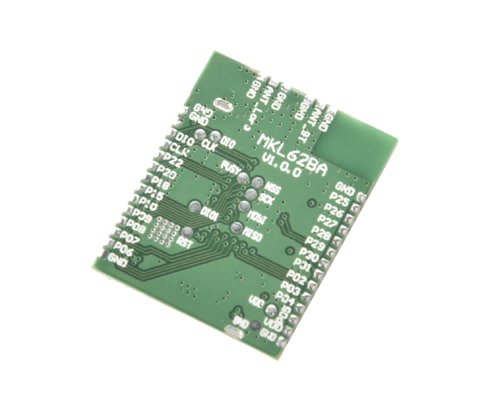

MKL62BA

LoRaWAN® Module

MKL62BA is a standard LoRaWAN node module designed and manufactured by MOKO technology Ltd.

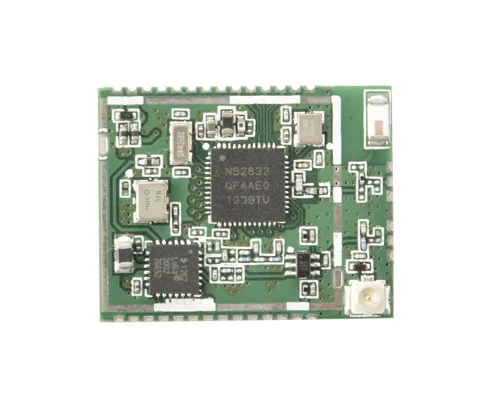

The module integrates with the world-leading Nordic Semiconductor nRF52832 (BLE) and Semtech Sx1262 (LoRa) chipsets, providing ultra-low power consumption with outstanding wireless range using the LoRa radio link and local BLE connections.

Product Features

> Bluetooth 4.0 – Nordic nRF52832
> On-board BLE ceramic antenna
> U.FL(IPEX) for external LoRa antenna
> Long range – LoRa range up to 10 km
> Ultra-low power consumption

> Compact footprint and 34 pins with SMT package
> No external components required
> Support for AT command configuring
> Built-in TCXO for improve high-frequency stability and can be used for harsh environment in outdoor application

LoRaWAN® Module Applications

Technical Description

LoRa Performance

LoRaWAN Protocol

V1.0.3

LoRa Frequency

MKL68BA-US915 support US915/AU915/AS923 MKL68BA-EU868 support EU868/IN865

Tx Power

Max 21 dBm

Sensitivity

- 137dBm@SF12

Range

Up to 7km(in free space 5dBi)

PerformLoRa ance

Dimensions

24mm x 19mm x 2.8mm

Hardware

MCU

NRF52832

Flash

512KB

RAM

64KB

Interface

Total 34pins

Supply Voltage

3.3V

Operating Current

Max 120mA

Sleep current

7uA

Power Supply

1.75V to 3.6V

Bluetooth Performance

Bluetooth® (BLE)

V4.0

Frequency

2.402 - 2.480 GHz

Transmit Power

0 dBm

Range

Up to 50m in free space

Antenna Options

BLE (Internal) chip antenna

On-board ceramic chip antenna-0.5 dBi

LoRa (External)

U.FL (IPEX) connector for external antenna

Application Specification

Operating Temperature

-40 ˚ C to +85 ˚ C (VCC 3.3 V)

Storage Temperature

-40 ˚ C to +85 ˚ C

CE Certifications

In progress

FCC Certifications

In progress

LoRaWAN Alliance certification

In progress

Miscellaneous

Lead-free and RoHS compliant
