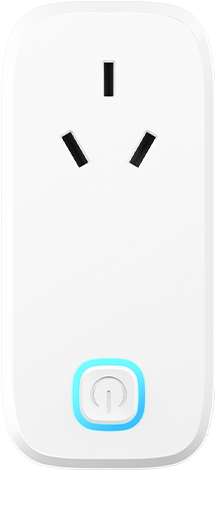

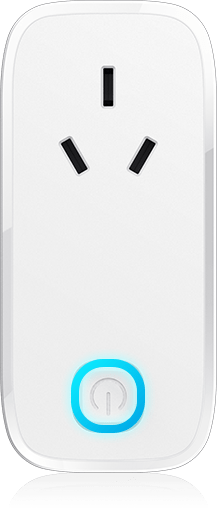

WIFI Smart Outlet MK116

MK116 is WIFI smart plug with energy monitoring,which can track your device’s power consumption in real-time. The plug is built-in ESP32 module to realizes WIFI communication. It can access to multiple servers such as MQTT broker, ALi IOT, AWS IOT,also can connect to your own servers.Users can easily manage your electrical device from the server or APP client.

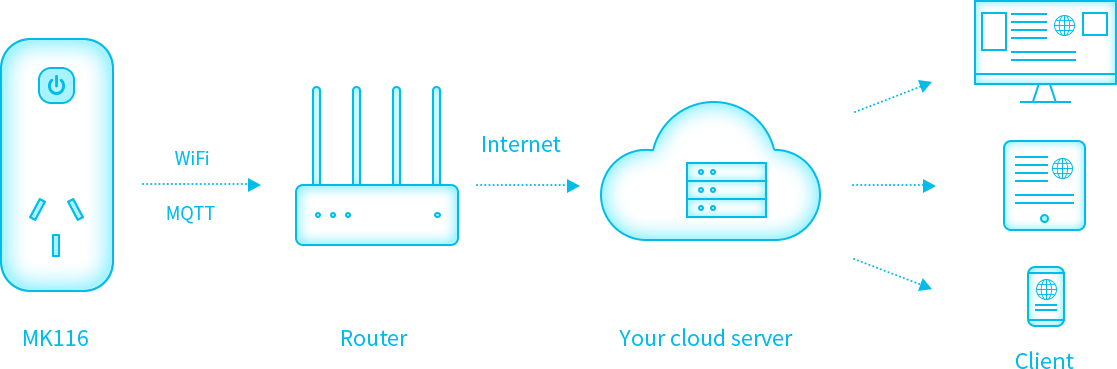

Functional Block Diagram

Standard hardware and firmware support MQTT protocol, can access to your own cloud server

Product Features

• Control from anywhere
• Timer control
• High accuracy power/energy reading
• Firmware update Over The Air (OTA)

• Overload proction to improve safety
• Immediate notification when detects a load
• Analyze real-time and historical consumption
• Multicolor LED codes device status and consumption

Parameter

Wireless Type:	WiFi
MCU:	ESP32
Input Voltage:	230V AC 50/60Hz
Rated load current:	10A - continuous load
power output:	2400W Max
Operating temperature:	0 ºC~ 40 ºC ( 32°F ~ 104°F )
Plug type:	Type I

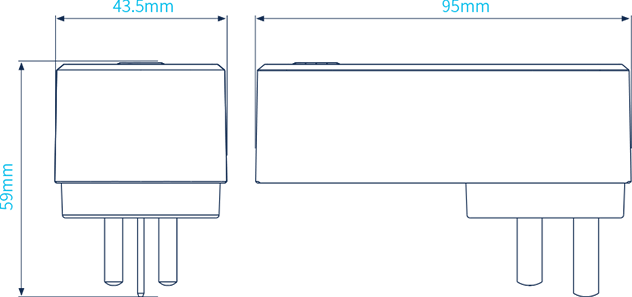

Dimensions(Diameter*Height):	95.543.559mm
EU directives compliance :	SAA/RCM

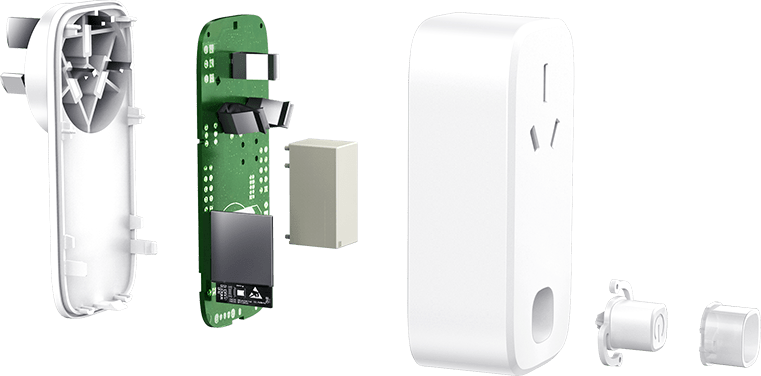

Exploded Drawing
Make every detail perfect, keep improving in design

Both PCBA and enclosure adopt safe materials

Compatible with more wireless communication way

Application

CUSTOMIZED SERVICE

Support customized firmware, flash the customized firmware during the manufacture
Support customized hardware with Zigbee, Z-wave , Bluetooth and other wireless type
Packing customization: customized label, logo sticker and boxes
Power metering SDK and schematic diagrams are available for customers to develop firmware
Support Android& IOS API for APP developing
Professional engineers provide certificates service:
Customers can directly get your own certification that transfered by MOKO’s existing certificates
Also apply for certain certification required by customers.
